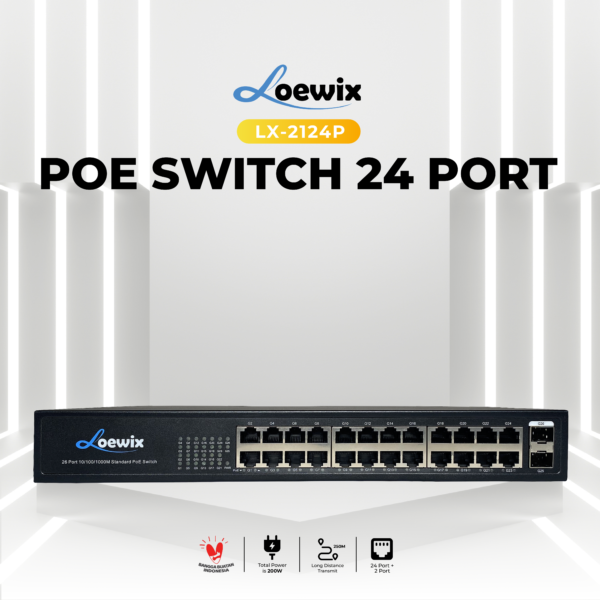

POE SWITCH 24 PORT GIGABIT + 2x SFP

Description

Pengenalan Loewix POE Switch

Loewix POE Switch CCTV 24 Port adalah solusi ideal untuk jaringan Anda. Dengan teknologi gigabit penuh dan jaminan selama dua tahun, perangkat ini membawa keandalan dan performa tinggi.

Spesifikasi Utama

Perangkat ini dilengkapi dengan 24 port 10/100/1000 Base-T, mendukung pengiriman data dan daya melalui kabel Ethernet. Port 1-24 secara otomatis mendeteksi dan mengadaptasi untuk berbagai kecepatan, sementara uplink SFP memberikan konektivitas yang efisien.

Spesifikasi

• Fixed port :
  24*10/100/1000 Base-T Poe Ports (Data/Power)
  2*1000 Base-X uplink SFP ports (Data)
• Ethernet Port :
  Port 1-24 support 10/100/1000 Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
• Twisted pair transmission :
  100 Base-TX : Cat5 or later UTP(<100 meter)
  1000 Base-T: Cat5e or later UTP(<100 meter)
• SFP Slot port:
  Gigabit SFP optical fiber interface, default not matching optical modules (optional order single-mode/ multi-mode, single fiber/dual fiber optical module. LC)
  optical cable/distance:
  Multi mode : 850nm/0~550M.
  Single mode : 1310nm/0~40KM, 1550nm/0~120KM.
• Chip parameter
• Network protocol:
  IEEE802.3 10BASE-T; ieee802.3i 10Base-T;
  IEEE802.3u 100Base-TX; ieee802.3ab 1000Base-T
  IEEE802.3z 1000Base-X
  IEEE802.3x
• Forwarding Mode:Store and Forward (Full Wire Speed)
• Switching Capacity:52Gbps (Non-blocking)
• Forwarding:38.69Mpps
• Rate@64byte:38.69Mpps
• MAC:8K
• Buffer Memory:4M
• Led indicator:
  Power: PWR (green), network: Link (green). PoE: PoE (green). Fiber: G1/G2 (green), poe:poe (green)
  Poe& power
• Poe port: port 1 to 24 IEEE802.3af/at @POE
• Power supply Pin: defaul 1/2 (+), 3/6 (-)
• Max power Per Port:30W; IEEE802.3af/at
• Total power/input voltage: 250W/(AC100-240V)
• Power consumption:Standby<20W, Full Load<250W
• Power supply:built-in power supply, AC 100~240V 50-60Hz 4.1A
• Physical Parameter
• Operation TEMP/Humidity:-20~+55 C, 5%~90% RH Non condensing
• Storage TEMP/Humidity:-40~+75 C, 5%~95% RH Non condensing
• Dimension (L*W*H):330*204*44mm
• Net/Gross Weight:3.5kg
• Installaton:
  Deskop, wall wounded, 19 inch 1U cabinet
  Certification & Warraty
  Lightning protection/protection level:
  Lightning protection:4KV 8/20us; Protection level: IP30
  Certification:CCC, CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHs
• Warranty: 2 year, lifelong maintenance
